Three pairs of special designed integrated aluminum air blades
Speed up to 15m/min
Product Features
1. Modular assembly structure, aluminum alloy frame, touch screen control
2. All parts of the machine that come into contact with water are made of stainless steel 304
3. System sets energy-saving standby mode, can save more than 75% of electric energy
4. 3 pairs of brushes, 3 pairs of straight air knives, 1 blower
5. Special soft brush can wash Low-E glass and ordinary coated glass
6. One-key automatic thickness adjustment, equipped with air heating, water heating and temperature acquisition system
7. Can connect with high-speed double edging machine, glass loading/unloading machine and other equipment to realize automated production line
8. Maximum speed: 15 m/min
Product Features
1. Modular assembly structure, aluminum alloy frame, touch screen control
2. All parts of the machine that come into contact with water are made of stainless steel 304
3. System sets energy-saving standby mode, can save more than 75% of electric energy
4. 3 pairs of brushes, 3 pairs of straight air knives, 1 blower
5. Special soft brush can wash Low-E glass and ordinary coated glass
6. One-key automatic thickness adjustment, equipped with air heating, water heating and temperature acquisition system
7. Can connect with high-speed double edging machine, glass loading/unloading machine and other equipment to realize automated production line
8. Maximum speed: 15 m/min
APPLICATION SCENARIOS
Small to medium batch conventional glass cleaning: suitable for small and medium-sized processing factories or shops handling decorative glass, display cabinet glass, ordinary flat glass, etc.
PARAMETERS
Model | Max size | Min size | Thickness | Speed | Power | Size |
S2500-B | 2550 | 250*350 | 3-19 | 1-15 | 35(Excluding air heater and water heater) | 5700*4200*2500 |
S2000-B | 2050 | 350*300 | 3-19 | 1-15 | 27(Excluding air heater and water heater) | 5700*3700*2500 |
Copy product links
Long by picture save/share
MAIN PARTS INTRDUCTION
Control system

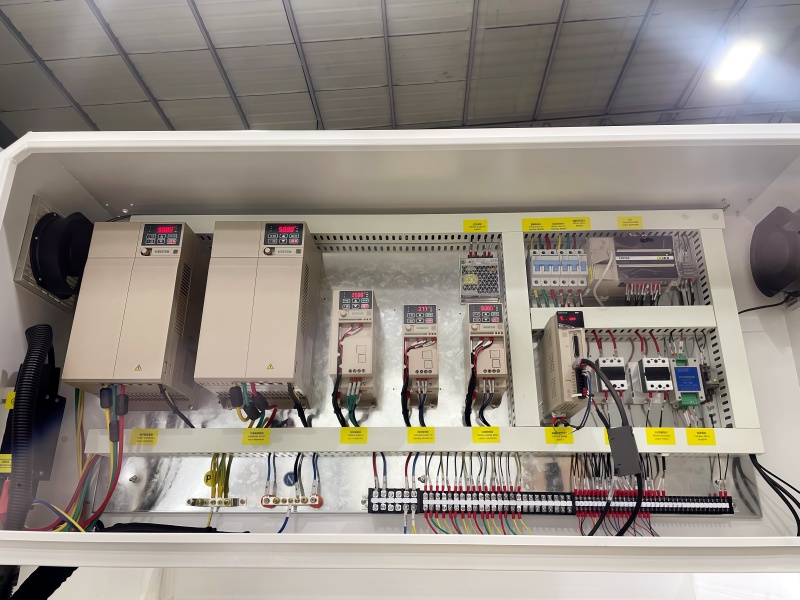

Electric box
The electrical cabinet consists of switching power supply, PLC, frequency converter, etc.

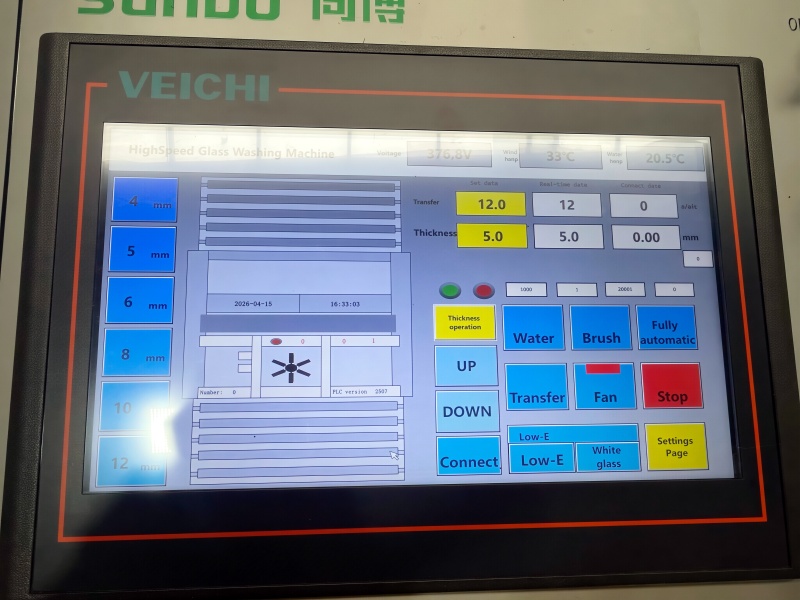

Operation Page 1
Clear interface: manual/auto start.
One-key thickness & Low-E cleaning for efficiency.
Operation Page 2
Manual interface: independent air & water heating adjustment for better cleaning.
Glass loading section
Loading roller
Its self-cleaning design utilizes roller rotation to automatically remove contaminants, ensuring the glass surface stays clean throughout conveying.
Spray
Patented Sunbo dual spray (3 top, 1 bottom) removes glass powder. Quick-connect pipes for easy clean
Water-removal air knife
A one-piece aluminum alloy air knife at the main unit inlet removes dirty water from the glass surface after rinsing, keeping it out of the cleaning section.
Washing section
Special soft brush
Sunbo patented bristle planting: φ160mm brush, 304 shafts, cylinder lift. Soft bristles clean Low-E/
Hard brush
Sunbo patented bristle planting: φ160mm brush, 304 shafts, cylinder lift. Hard brush cleans flat glass.
Dedicated belt for brushes
Brush-specific belt: high-strength material, wear-resistant, anti-stretch, long-lasting.
Drying section

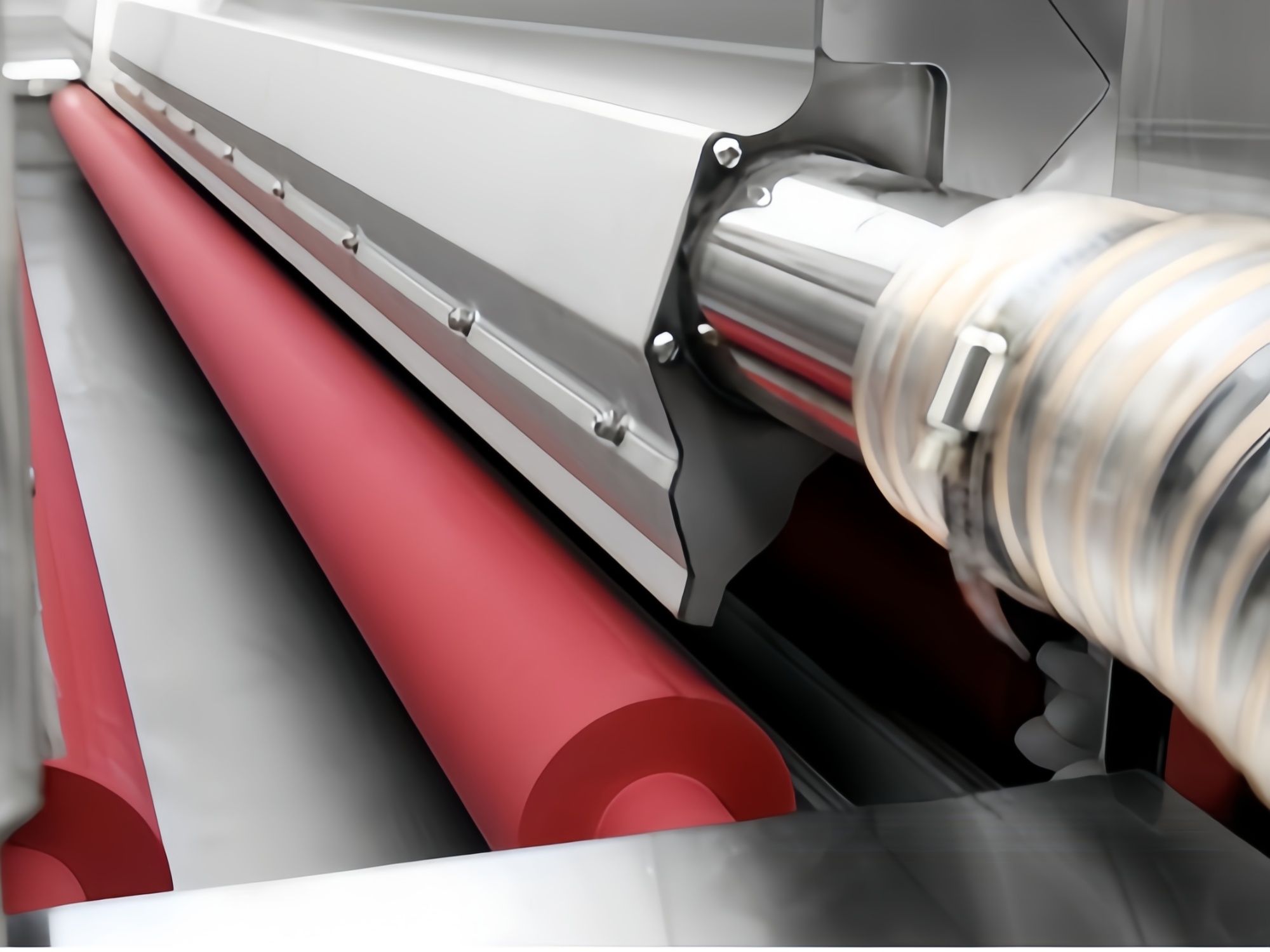

Air knife
Sunbo patented baffle cuts air loss, boosts blow-off efficiency.
Blower
Sunbo patented blower: high-pressure, low-noise, intake filter for superior glass cleanliness.
Air pipe
Copper-wire reinforced air pipe offers durability, pressure & shape retention.
Conveying section

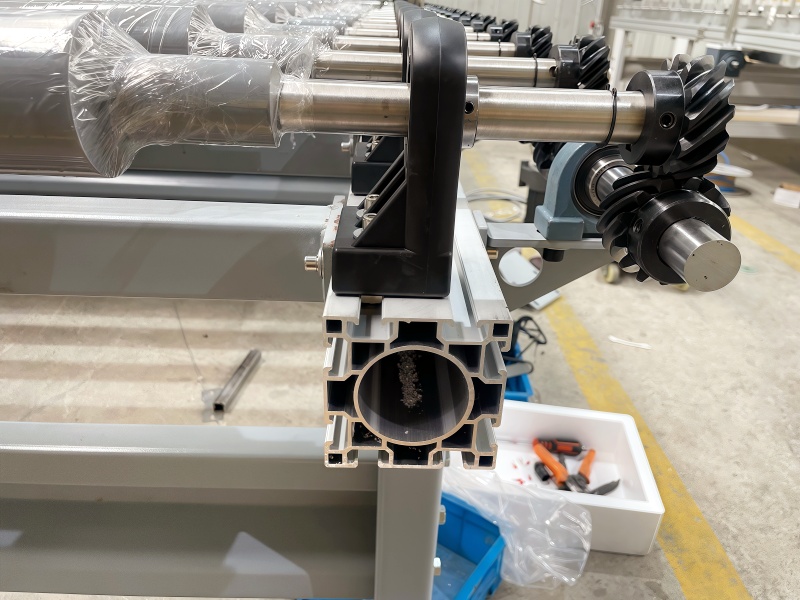

Roller support bearing housing
Sunbo patented roller support bearing: compact & robust for high strength, wear resistance.
Loading roller
Conveyor rollers: vulcanized rubber (no acid contact), stainless steel shafts. Diameters: 76mm (<2.5m), 82mm (>3.0m).

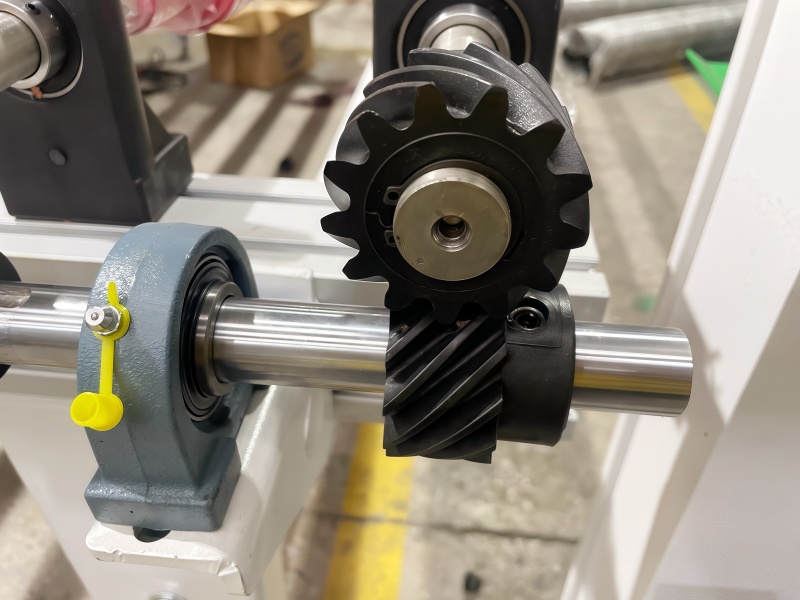

Helical gear
Nylon helical gear: lower noise & smooth transmission without oil vs. iron gear.
Conveying Motor
Motor is VFD-controlled. When no glass is detected at infeed for preset time, it slows down to standby mode, cutting power consumption by >75%.
Water circuit system
Water tank
External water tank with three independent compartments, casters at the bottom, and a concave center for efficient drainage and easy cleaning, improving overall cleaning performance.
Filter screen
A filter screen is installed at the water tank outlet to effectively trap debris.
Three-phase asynchronous motor
0.37kW, 2300r/min three-phase motor for humid environments — ideal for pumps, fans, and glass processing auxiliaries.
